Inspur NF5280M6 Rack Server 2U Dual-Socket Enterprise Server with 3rd Gen Intel Xeon Scalable Processors 64GB DDR4-3200 ECC RDIMM and 2 × 800W Hot-Plug Redundant Power Supplies
| MOQ: | 1 |
| Price: | 200USD~850USD per piece |
| Standard Packaging: | Original Boxed |
| Delivery Period: | 1~7 days |
| Payment Method: | T/T,,Credit Card,PayPal,Western Union,Cash,Escrow; |
| Supply Capacity: | 50 pieces per day |
Detail Information
Place of Origin
China
Brand Name
Inspur
Model Number
5280M6
CPU:
2 × Intel Xeon Silver 4314 (16 Cores, 2.40GHz)
RAM:
64GB (2 × 32GB DDR4-3200 ECC RDIMM)
Storage:
2 × 960GB Enterprise SATA SSD
RAID Card:
Broadcom RAID 9350-8i, 2GB Cache
Network Card:
Dual-Port 10GbE SFP+
Power Supply:
2 × 800W Hot-Plug Redundant Power Supplies
Condition:
New/Refurbished/Used
Warranty:
Three Years
Product Description

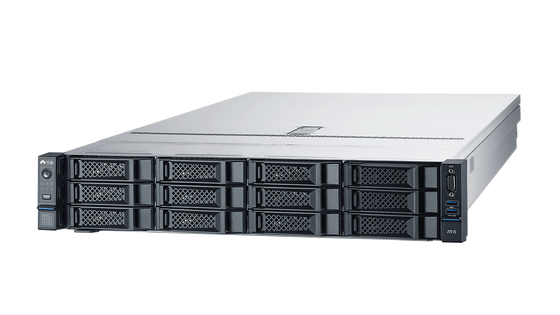

Inspur NF5280M6 Rack Server
High-Performance 2U Dual-Socket Enterprise Server
The Inspur NF5280M6 is a powerful 2U dual-socket rack server designed for cloud computing, virtualization, databases, AI, high-performance computing, and enterprise applications. Powered by the 3rd Gen Intel® Xeon® Scalable processors, it delivers outstanding computing performance, flexible scalability, and intelligent management for modern data centers.
Key Features
Powerful Performance
- Supports 1 or 2 Intel® Xeon® Scalable Processors (3rd Gen)
- Up to 40 cores per processor
- Processor TDP up to 270W
- Intel C621A chipset
- PCIe 4.0 architecture for higher bandwidth
Large Memory Capacity
- Up to 32 DDR4 DIMM slots
- Memory speed up to 3200MT/s
- Maximum memory capacity up to 4TB
- Supports RDIMM and LRDIMM ECC memory
Flexible Storage Options
- Up to 24 * 2.5" SAS/SATA/NVMe drives
- Or 12 * 3.5" SAS/SATA/NVMe drives
- Rear expansion supports additional hot-swap drives
- Optional M.2 boot drives
- Multiple RAID controller options available
Rich Expansion
- Up to 11 PCIe 4.0 expansion slots
- OCP 3.0 network adapter support
- 1/10/25/40/100/200GbE networking options
- Flexible GPU and accelerator expansion
Intelligent Management
- Dedicated management Ethernet port
- IPMI remote management
- Intelligent system monitoring
- Tool-free maintenance design
- Efficient cooling and power management
Popular Configuration
| Component | Specification |
|---|---|
| Model | Inspur NF5280M6 |
| Form Factor | 2U Rack Server |
| Processor | 2 * Intel Xeon Silver 4310 (12 Cores, 2.10GHz) |
| Memory | 128GB (4 * 32GB DDR4-3200 ECC RDIMM) |
| Storage | 2 * 1.92TB Enterprise SATA SSD |
| RAID Controller | RAID 9400 Series |
| Network | Dual-Port 10GbE SFP+ |
| Power Supply | 2 * 800W Hot-Plug Redundant Power Supplies |
| Management | Dedicated IPMI Remote Management |
| Rail Kit | Included |
| Warranty | 3 Years |
Technical Specifications
| Item | Specification |
|---|---|
| Form Factor | 2U Rack Server |
| Processor | 1 or 2 * 3rd Gen Intel Xeon Scalable Processors |
| Chipset | Intel C621A |
| Memory | Up to 32 DDR4 DIMMs |
| Memory Speed | Up to 3200MT/s |
| Maximum Memory | 4TB |
| Storage | SAS / SATA / NVMe SSD & HDD |
| Drive Bays | Up to 24 * 2.5" or 12 * 3.5" |
| RAID | RAID 0/1/5/6/10/50/60 |
| Expansion Slots | Up to 11 PCIe 4.0 Slots |
| Network | OCP 3.0, 1/10/25/40/100/200GbE |
| Operating Systems | Windows Server, VMware ESXi, Red Hat Enterprise Linux, Ubuntu, CentOS, SUSE Linux Enterprise |
| Power Supply | 550W / 800W / 1300W / 1600W / 2000W Redundant Options |
| Management | IPMI / BMC Remote Management |
Ideal Applications
- Cloud Computing
- Server Virtualization
- Enterprise Database
- AI Inference
- High-Performance Computing (HPC)
- Big Data Analytics
- ERP & CRM Systems
- Software Defined Storage (SDS)
- Government & Education
- Financial Services
Why Choose Us?
- Original Inspur Enterprise Server
- Competitive Wholesale Pricing
- Ready Stock & Fast Delivery
- Global Shipping Available
- Professional Hardware Testing
- Flexible CTO/BTO Configuration
- OEM & Bulk Order Support
- 3-Year Warranty
Request a Quote
Looking for the best price?
Contact our sales team today for:
- Customized server configurations
- Volume discounts
- Global shipping solutions
- Fast delivery from stock
- Professional technical consultation
